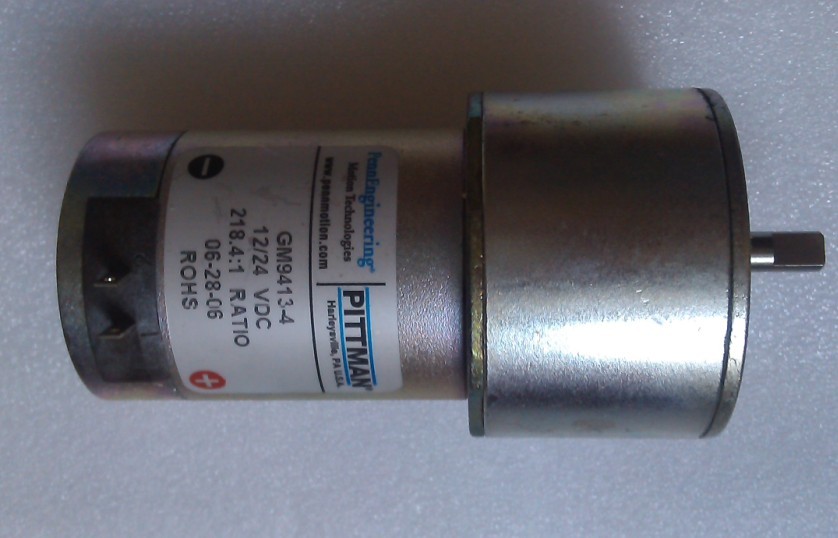

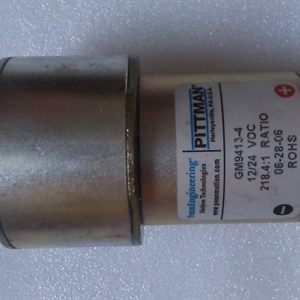

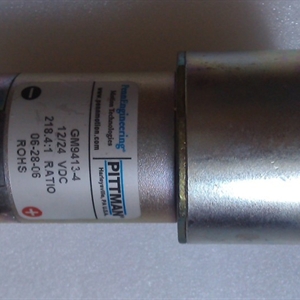

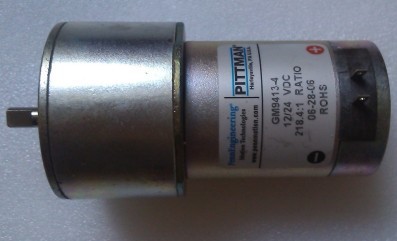

我们竭诚为您提供优质、舒心的服务和强有力的技术支持！全天候响应您的需求！PITTMAN 电机 GM9413-4/GM9213-4
详细参数信息：
| Motor Series | Series GM9000 LO-COG Brush Commutated DC Gearmotors |
|
|
|
| Frame Size (Mounting Face) (in) | 2 |
| Motor Frame Size (in) | 1.58 |
| Gear Frame Size (in) | 2.000 |
| Overall Body Length (in) | 3.476 |
| Supply Voltage (V) | 12 |
| Continuous Output Torque (oz-in) | 175 |
| Output Speed @ Cont. Torque (RPM) | 2.23 |
| Current @ Cont. Torque (A) | 0.81 |
| Continuous Output Power (W) | 0.29 |
| No Load Current (A) | 0.15 |
| No Load Output Speed (RPM) | 11.6 |
| Peak Current (A) | 1.4 |
| Peak Output Torque (oz-in) | 930 |
| Motor Constant (oz-in/√W) | 1.94 |
| Motor Torque Constant (oz-in/A) | 5.6 |
| Motor Voltage Constant (V/krpm) | 4.14 |
| Terminal Resistance (Ohms) | 8.33 |
| Inductance (mH) | 6.2 |
| Coulomb Friction Torque (oz-in) | 0.5 |
| Viscous Damping Factor (oz-in/krpm) | 0.011 |
| Electrical Time Constant (ms) | 0.74 |
| Mechanical Time Constant (ms) | 15 |
| Thermal Time Constant (min) | 11 |
| Thermal Resistance (ºC/Watt) | 19 |
| Maximum Winding Temperature (ºC) | 155 |
| Rotor Inertia (oz-in-s2) | 0.00039 |
| Output Bearing | Sleeve |
| Gear Series | G51A |
| Gear Ratio (xx.x:1) | 218 |
| Gear Type | standard spur |
| Gear Efficiency | 0.59 |
| Gear Maximum Torque (oz-in) | 175 |
| Encoder Series | n/a |
| Encoder Resolution (CPR) | n/a |
| Encoder Output Channels | n/a |
| Weight (Mass) (oz) | 16 |
