FAULHABER introduces the new high power 0816SR Series DC-Micromotors. Based on the revolutionary System
FAULHABER ironless rotor winding, they deliver best in class performance in a compact 8 mm diameter with
continuous torque up to 0.7 mNm and a stall torque of 1.2 mNm! Weighing in at just 4.5g the 0816SR is the
perfect choice for applications where light weight and high torque areessential. These coreless DC-Micromotors are
highly efficient by design which makes them ideal for battery operated device integration.Through the use of
state of the art materials including high power rare earth magnets, the 0816SR coreless motors have achieved the
industries best motor performance curve -11000 rpm/mNm, a value usually only reached by larger coreless DC motors.
This new series features several nominal voltage versions from 3V-12V. High performance sintered bearings are
standard with optional ball bearings available for higher radial shaft loads.
The new FAULHABER 0816SR Micromotors platform offers an extensive choice of gearheads and encoders to match
a wide variety of application requirements. These motors can be combined with planetary or spur precision gearheads
to provide with up to 100 mNm oftorque. For high precision positioning applications, FAULHABER zero backlash spur
gearheads provide a compact alternative to reduce or eliminate undesirable mechanical play in the application. The
encoder selection includes optical and magnetic encoders with a resolution of up to 256 pulses per revolution in 2 and
3 channel versions.FAULHABER offers a complete portfolio of drive electronics to match the requirements of the 0816
SR.From the miniaturized SC 1801or SC 2804 2 and 4 Quadrant speed controller to the compact MC 3002 motion
controllerwith RS232 or CAN interface, FAULHABER hasthe right solution to fit the application.
The 0816SR series provides high performance, high power density and unmatched combination flexibility, all in a
compact,high efficiencypackage. The new FAULHABER 0816SR platform represents an ideal competitive solution
for applications inmany challenging fields of application such as medical devices, robotics, laboratory instrumentation
or optics.

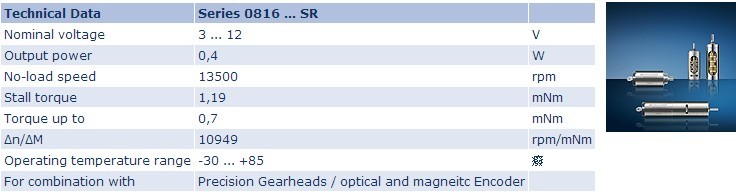

Continuous Torque: up to 0.7 mNm
Stall Torque: up to 1.2 mNm
Speed/Torque curve: 11000 rpm/mNm
Combination with optical or magnetic encoders and precision gearheads
