CONFIGURATIONS AVAILABLE

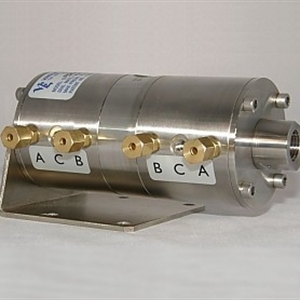

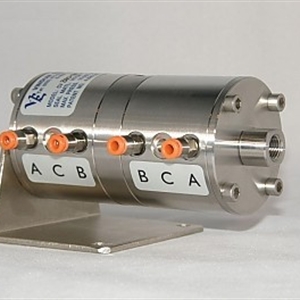

Model CV-310 3-Way/4-Position Valve to 10,000 psi (700 bar) with 1/8 inch Fitting Size (2 valves pictured to the right with a 4-Station Manifold Assembly)

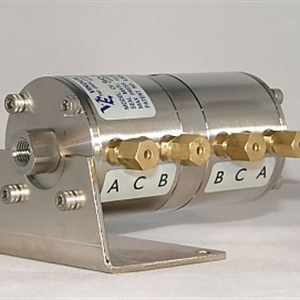

Models CV-505, 510 and 520 3-Way/4-Position Valves to 20,000 psi (1,500 bar) with 1/4 inch Fitting Size

TEMPERATURE RATING

200 degrees F (95 degrees C)

300 degrees F (145 degrees C) optional

ORCROSION RESISTANT MATERIALS

316 Stainless Steel or

 Hastelloy C2-76

AIR OPERATOR PRESSURE                                             SWITCHING TIME

80-115 psi (5.6-8.4 Kg/cm2)                                                 Less than .1 second

OPTIONAL ITEMS AVAILABLE                                            SMALL SIZE

High-Pressure Fittings                                                          CV310

Solenoid Pilot Valves                                                            Diameter: 2 inches

1/8 or 1/4 inch Pneumatic Line Fittings                                   Length: 3.64 inches

1/8 or 1/4 inch Tubing                                                                                                                                   Weight: 3.25 pounds

CV50 5, CV510, and CV520

Diameter: 2.25 inches                                                        Weight: 4.5 pounds

Length: 4.435 inches                                                         CV Valves Patent Number 4,830,331

Description

Constant volume or pressure during switching cycle

Extremely small dead volumes

High speed switching

Corrosion resistant materials

High-temperature environments

No trapped fluids

VINDUM ENGINEERING VALVES

Vindum Engineering has recently increased the number of different types of CV (Constant Volume) valves to include valves with 1/4 inch fittings. For the past 20 years the standard CV valves were designed for 1/8″ tubing. As with the older line of CV valves, the new line is available in on/off and 3-way/4-position versions. All of the 3-Way/4-Position valves are available with either stainless steel or Hastelloy C-276 wetted parts. The main valve seals can be Buna, Viton, Teflon, UHMW or Aflas. The choice, of course, depends on your application.

All of the new 500 series valves are slightly larger in diameter than the CV-310 valves, but they operate in the same fashion. Air solenoid valves are used to open and close the valve. The amount of fluid inside the valve does not change when the valve is switched. Since the valve is air actuated using small solenoid pilot valves, the CV series is ideal for automated equipment or remote operation inside an oven.

Valve Model              Maximum Pressure Rating [PSI (bar)]       Internal Volume (cc)       Approximate Flow Coefficient (Cv)

CV-310                           10,000 (700)                                            0.31                                        .06

CV-505                            5,000 (350)                                            1.08                                         .24

CV-510                            10,000 (700)                                           0.74                                         .12

CV-520                             20,000 (1,400)                                       0.62                                          .03
